Introduction

Occtoo provides a pre-built formatter that transfers product, variant, category, and attribute data from Occtoo to commercetools. Changes are propagated automatically, and the configuration options make it easy to tailor the integration to your needs. Occtoo Studio gives you full control over what is transferred: use segments to select the content, and choose which languages and attributes to include.

​
About commercetools

commercetools is a cloud-based headless commerce platform that provides APIs to power e-commerce sales and similar functions for large businesses. Read more at commercetools.com.

​
Data flow

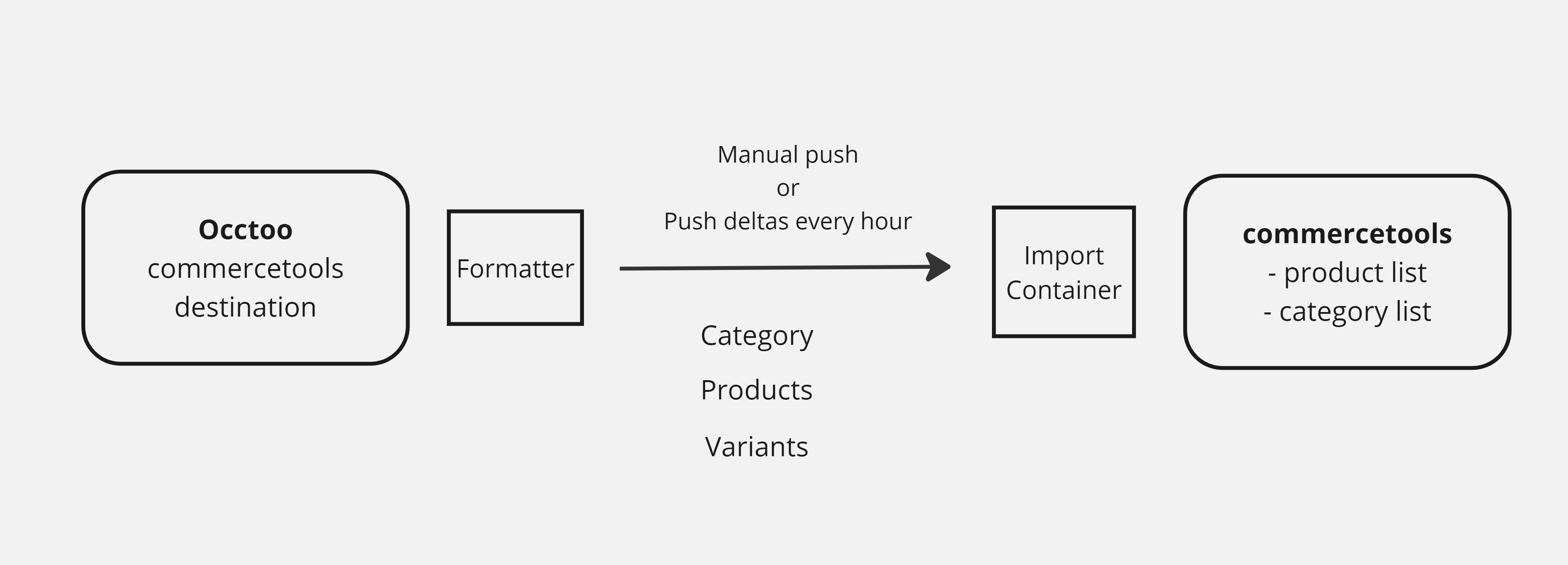

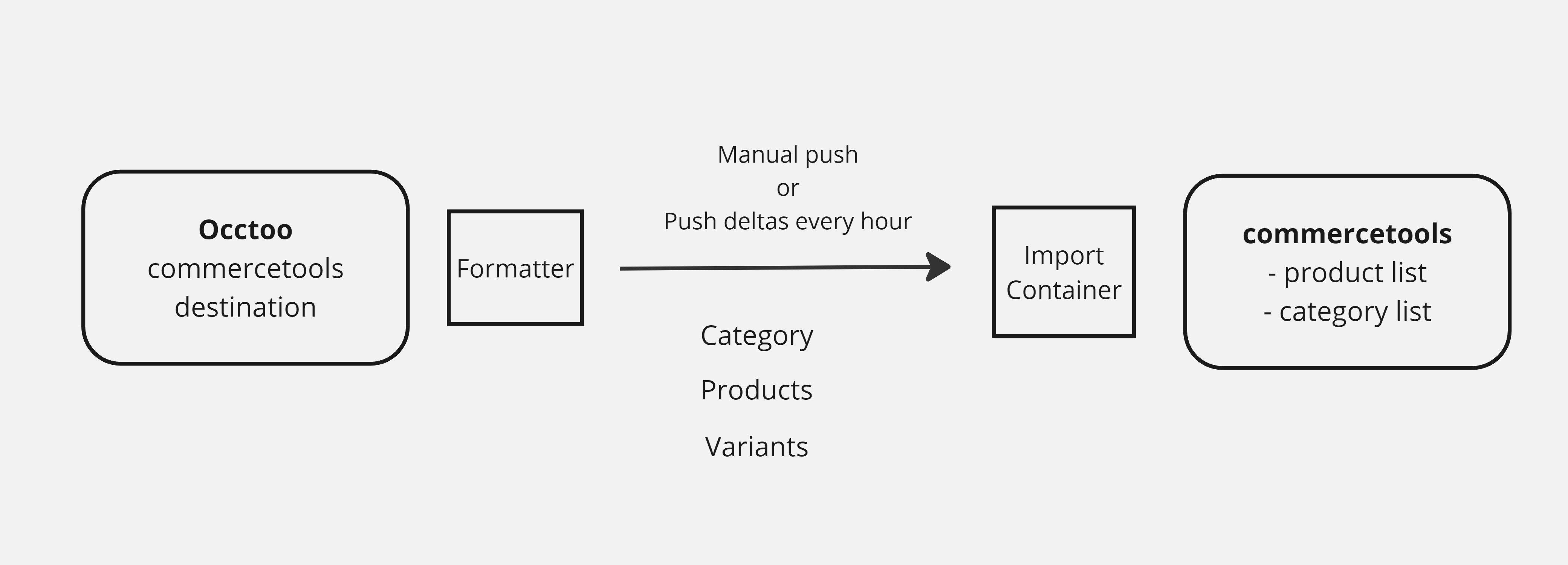

The data exposed by an Occtoo destination is transferred by the formatter and pushed to an import container in commercetools. The product flow is mandatory; the category flow is optional. The formatter runs every hour and checks for deltas, which are then sent to commercetools. You can also trigger a full run manually when needed. Updates are pushed to a commercetools import container, which imports them asynchronously so that large numbers of updates can be processed. You can follow the progress of an import in the Merchant Center. Overview of the data transfer to commercetools

​
Installation and setup

​
Prerequisites

  • Access to the commercetools Merchant Center
  • Access to the source code

​
Get the code

Request the code from developer@occtoo.com.

​
Register an API client in commercetools

Register an API client in commercetools by going to Settings > Developer settings and selecting Create new API client. Make sure to select the scopes required by the formatter, then copy all the values shown in the API client details — they are only displayed once. Add the values to the following formatter settings:
  • CommercetoolsImportClient__ClientId
  • CommercetoolsImportClient__ClientSecret
  • CommercetoolsImportClient__AuthorizationBaseAddress
  • CommercetoolsImportClient__Scope
  • CommercetoolsImportClient__ProjectKey
  • CommercetoolsImportClient__ApiBaseAddress
The values for CommercetoolsImportClient__AuthorizationBaseAddress and CommercetoolsImportClient__ApiBaseAddress must end with a slash (/).

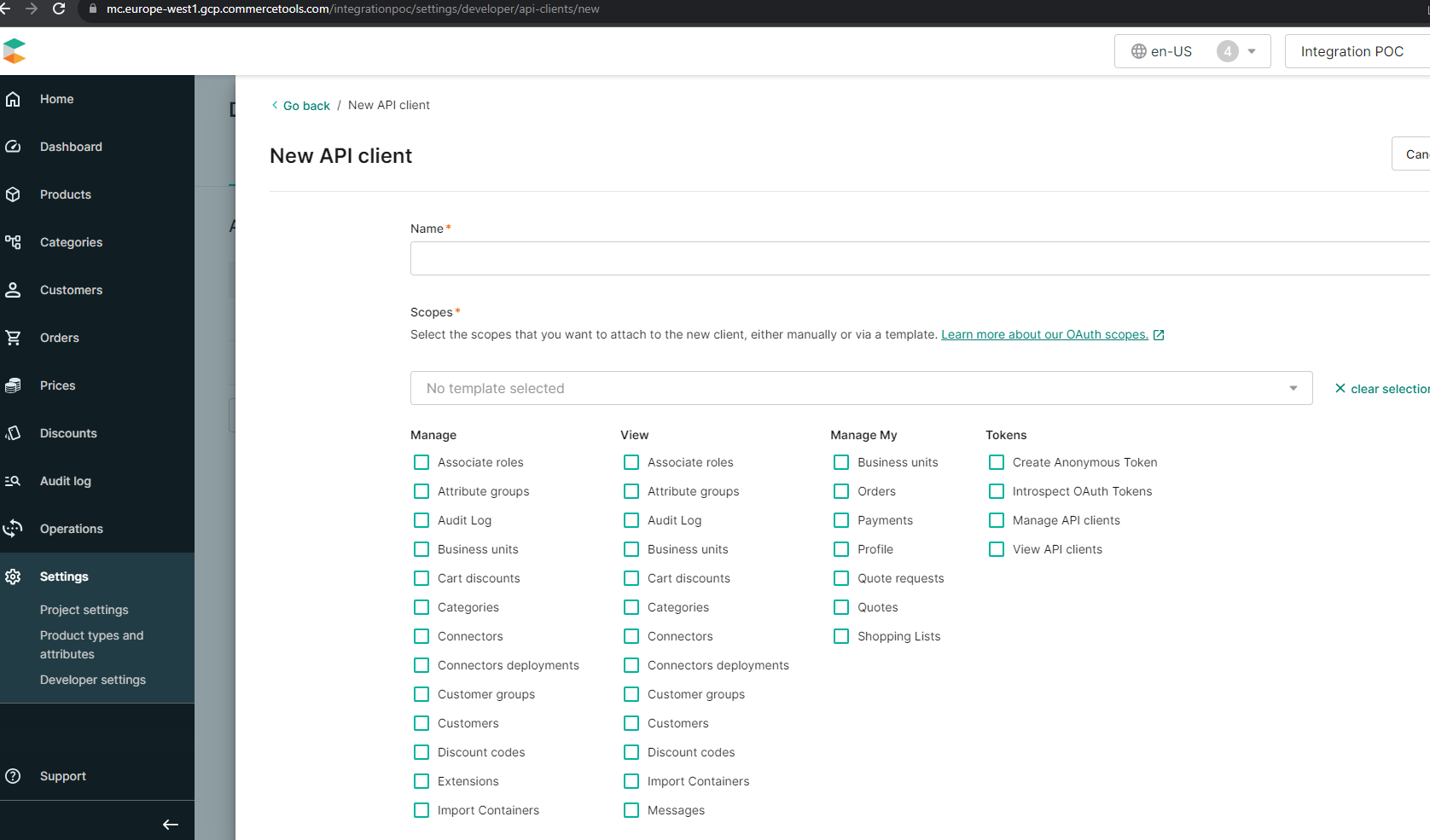

Registering an API client in commercetools

​
Endpoints

​
Products

The product flow is mandatory, so you need to provide an endpoint for product and product variant data. Add the URL of the product endpoint to the following setting:
  • DestinationSettings__ProductUrl
The endpoint must expose these properties:
  • productName — Localized text
  • productSlug — Localized text
  • productId — Text
The following properties are recommended:
  • productCategories — List
  • sku — Text
  • productDescription — Text
  • productType — Text
  • productMetaTitle — Localized text
  • productKeywords — Localized text
  • isMasterVariant — Boolean

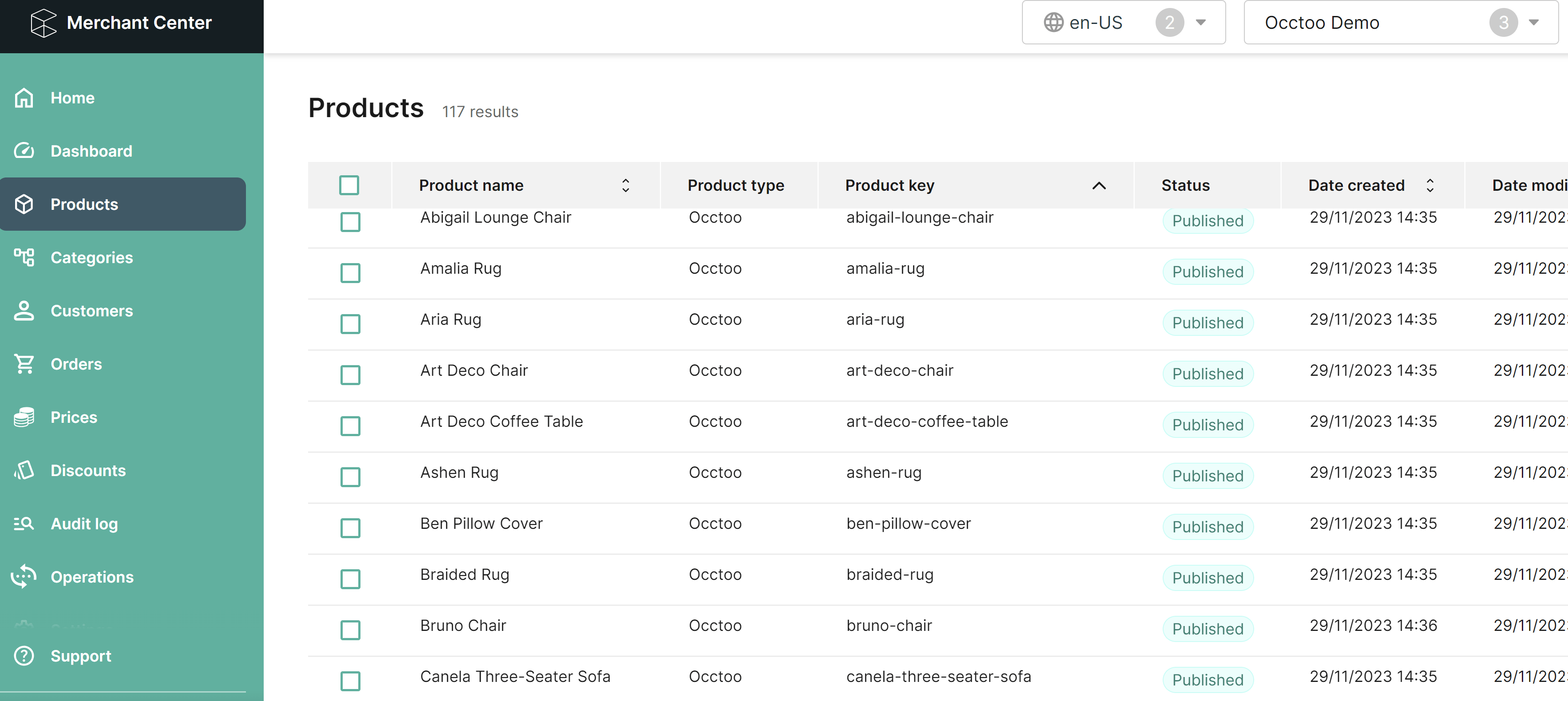

Product properties in commercetools

​
Categories

The category flow is optional and requires a separate endpoint for the categories. If you use it, add the URL to the following setting:
  • DestinationSettings__CategoriesUrl
If you omit this setting, no category data is transferred. The endpoint must expose these properties:
  • name — Localized text
  • slug — Localized text
The following properties are recommended:
  • description — Localized text
  • parent — Text
  • externalId — Text
  • metaTitle — Localized text
  • metaDescription — Localized text
  • metaKeywords — Localized text
  • orderHint — Text
The value of orderHint must be between 0 and 1.

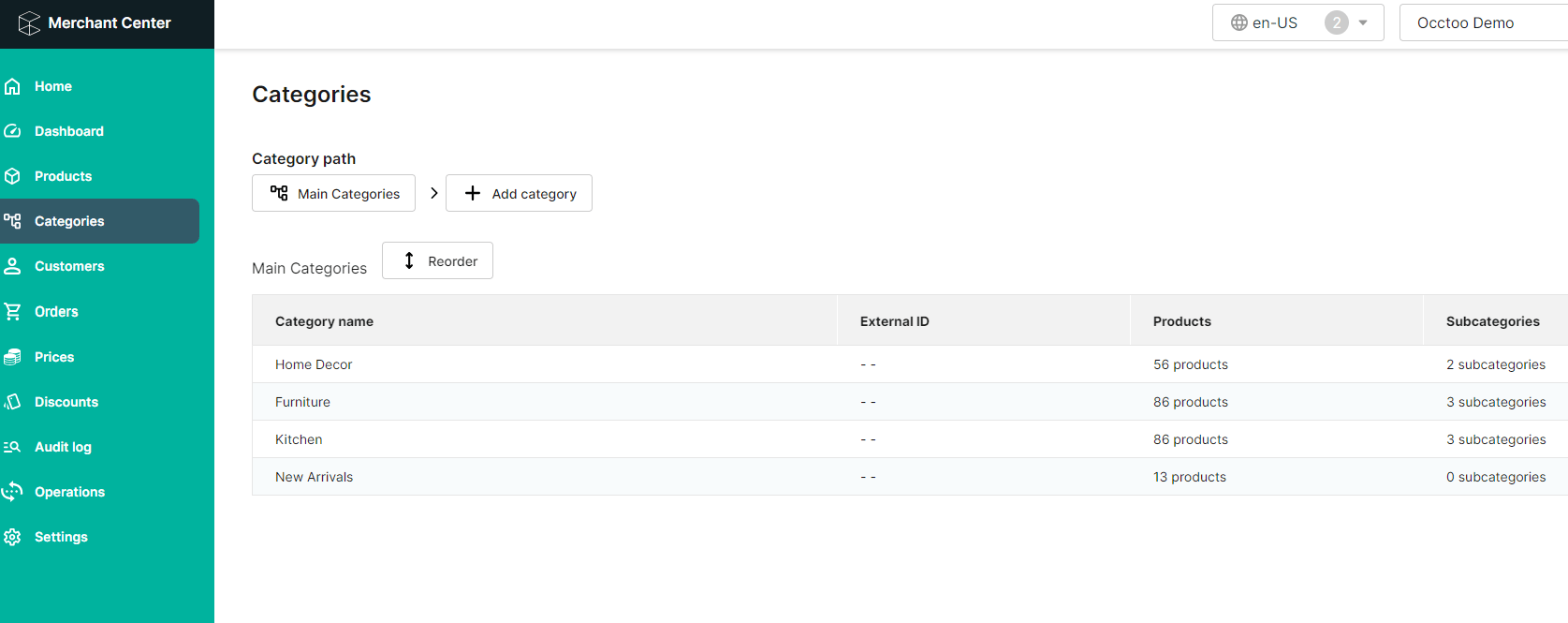

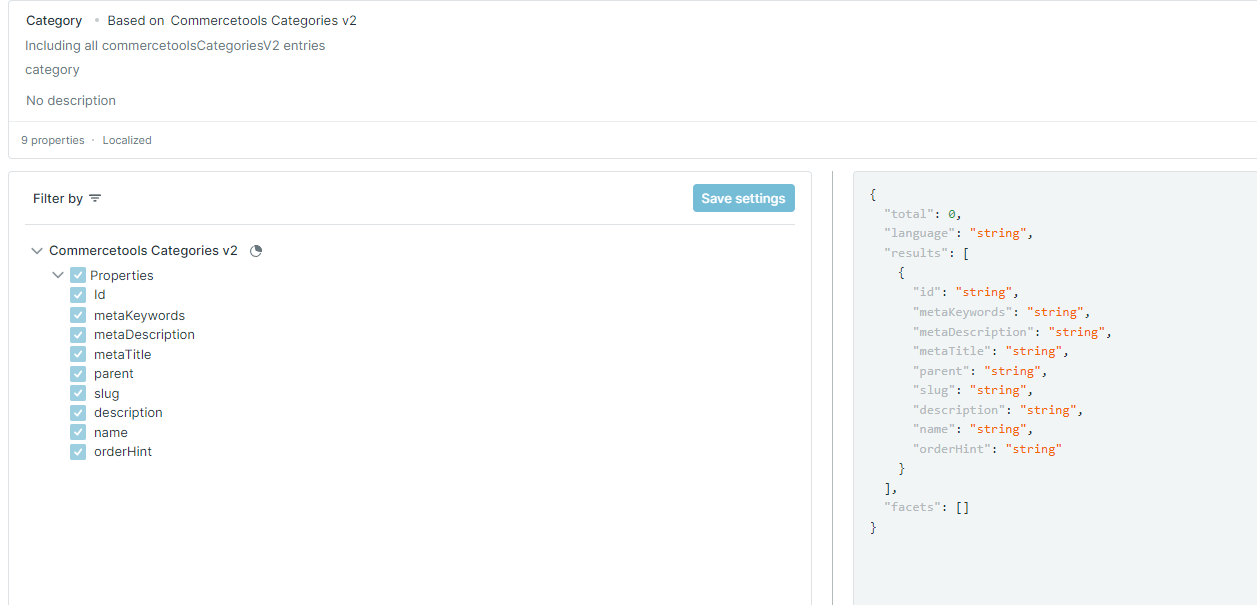

Category properties in Occtoo Categories in commercetools

​
Register an application in Occtoo

Register an application in Occtoo Studio and save its credentials in the configuration file for the formatter. Add the following settings:
  • ApiClientCredentials__ClientId
  • ApiClientCredentials__ClientSecret
  • ApiClientCredentials__TokenAuthUrl

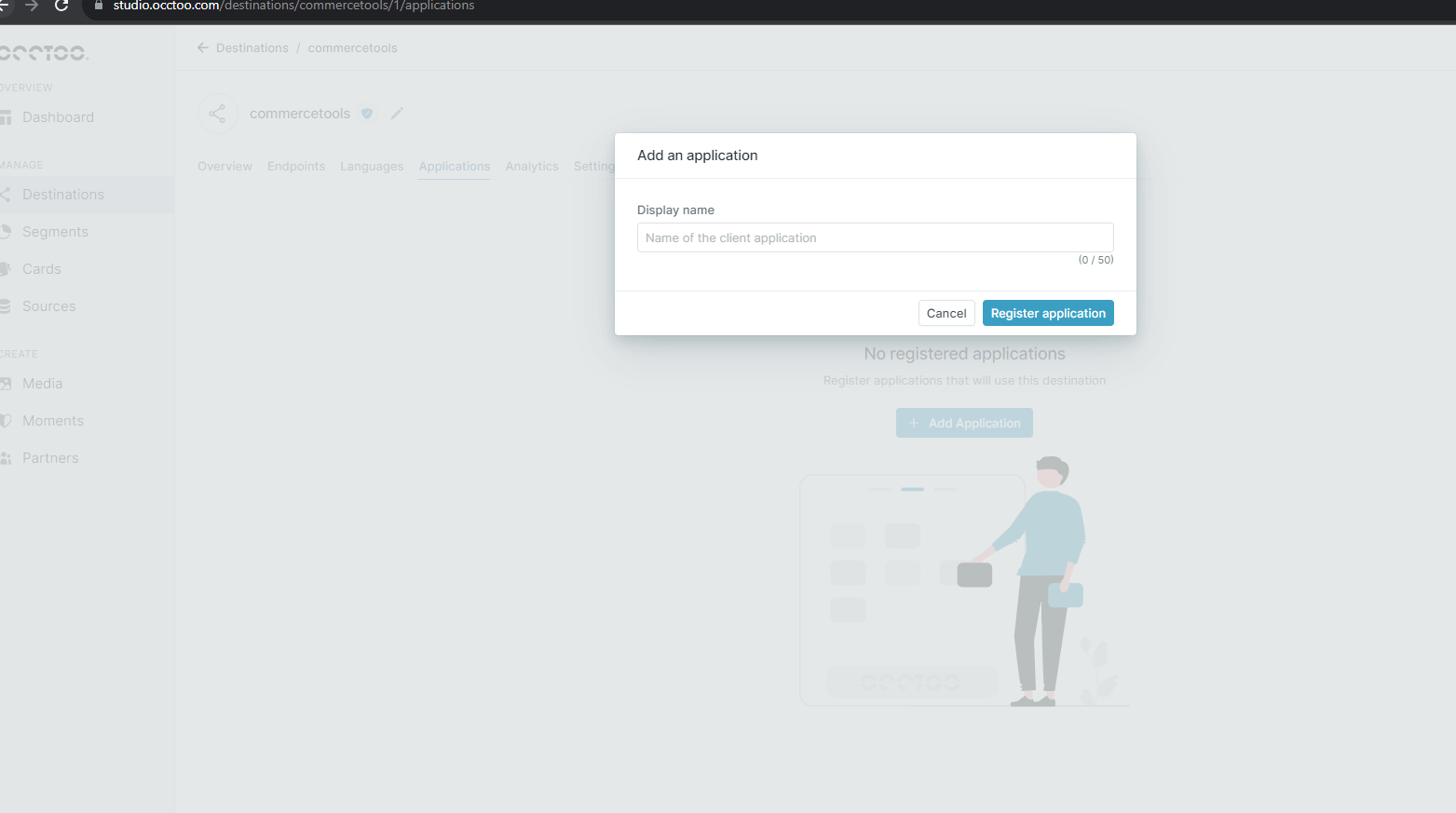

Registering an application in Occtoo

​
Product type

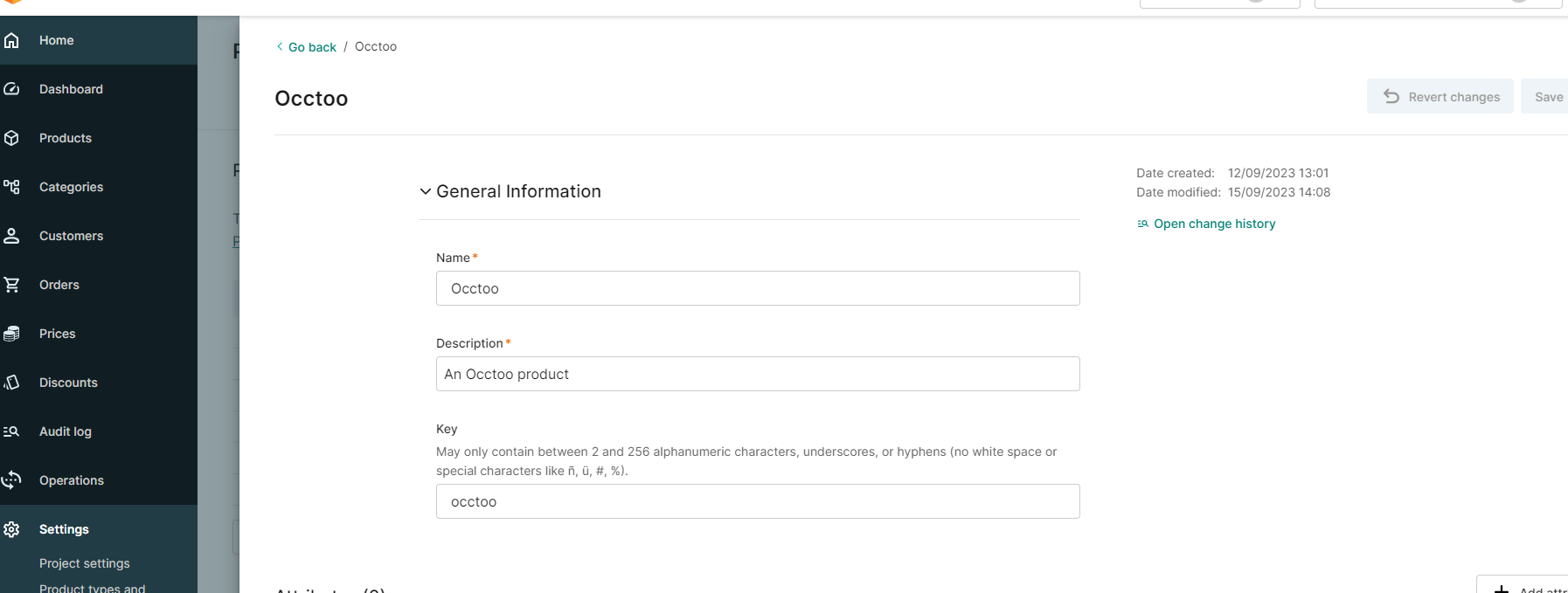

Create a product type in commercetools to assign to all products, then add its name to the CommercetoolsSettings__ProductTypeName setting in the configuration file for the formatter. Product types in commercetools

​
Languages

The languages configured for the destination should match the languages configured in the Merchant Center. Add the list of outbound languages to the configuration file for the formatter, with one row per language. For example:

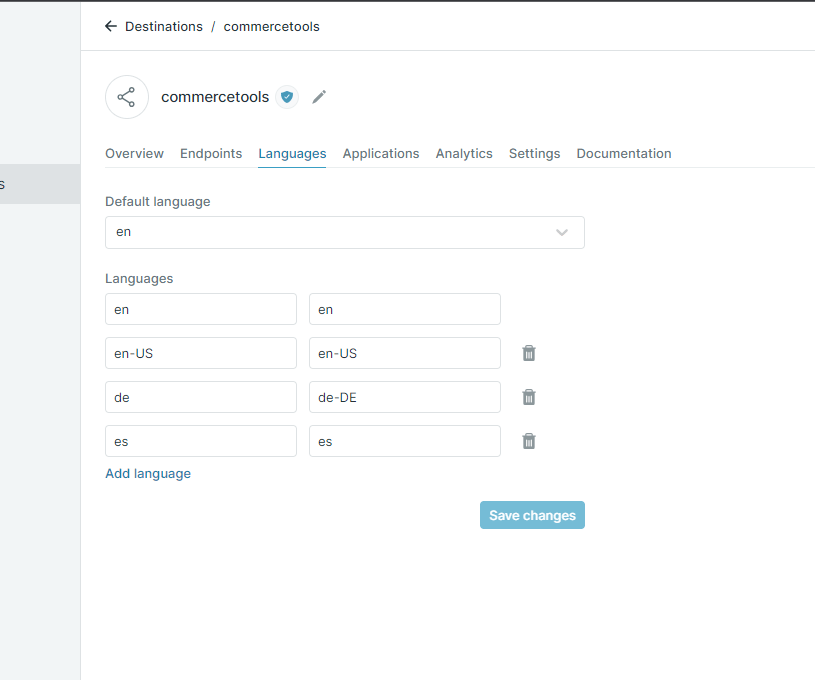

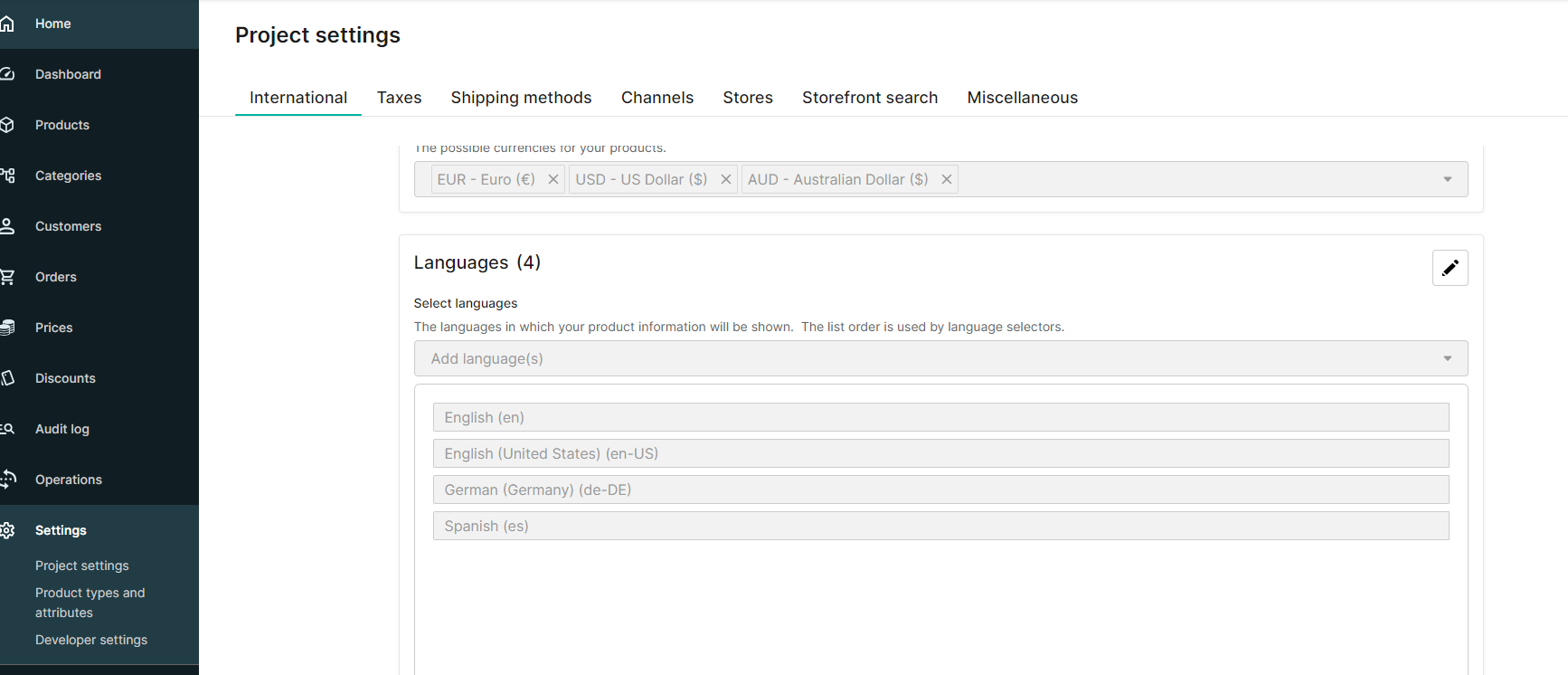

Languages in commercetools Languages in Occtoo

​
Import container

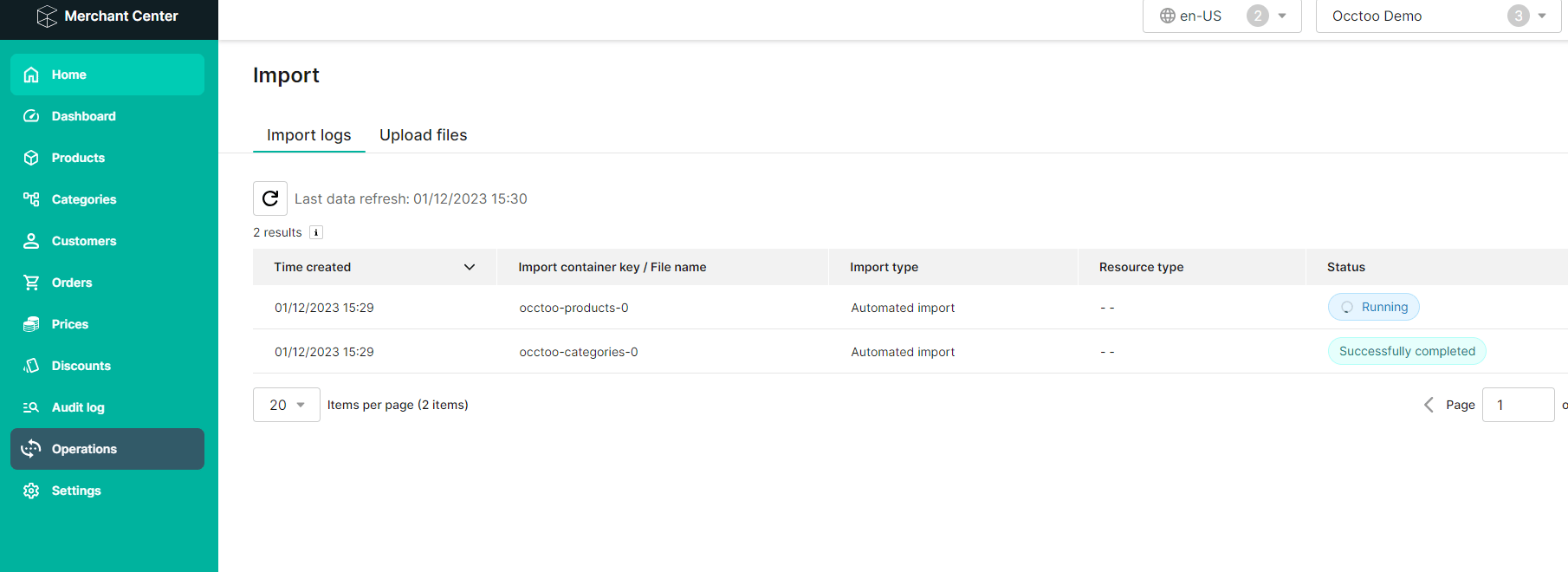

Import containers are created automatically and can be viewed in the Merchant Center. Use them to follow ongoing imports and to get information about any failures. Import container in commercetools

​
Attributes

Create the attributes in commercetools under the product type specified in the previous step, and set each attribute key to match the property identifier in Occtoo. For list values in commercetools, the values must be predefined before they can be used. Add the attributes you want to transfer to the configuration file for the formatter and specify the commercetools attribute type for each one. For example:
The supported attribute types are:
  • Boolean
  • Text
  • LocalizedText
  • Number
  • DateTime
  • Date
  • Time
  • EnumList
  • LocalizedList

​
Product publishing

To publish products or product variants automatically when they are transferred to commercetools, set either of these settings to true:
  • CommercetoolsSettings__PublishProducts
  • CommercetoolsSettings__PublishProductVariants

​
Manual execution

To run the flow manually, use the following POST endpoint:
The request body is a JSON object with a LastRunTime parameter, which specifies the point in time the delta is calculated from. For a full synchronization, set it to a very early date.
