Bluestone PIM

Introduction

This integration adds enriched product data from Bluestone PIM into the Occtoo Product Orchestration Engine. Digital teams can then combine that product data with data and content from other sources, such as ERP and CRM systems, enrich it further, and activate it in any channel in real time for a seamless customer experience. Everything is executed in a no-code studio, making digital teams more autonomous when launching new digital initiatives.

About Bluestone PIM

With Bluestone PIM, you can get your products to market and in front of customers faster, regardless of channel, region, or language. Read more at bluestonepim.com.

Data flow

Updates from Bluestone PIM are transferred automatically to the relevant Occtoo sources. You can run a full synchronization when needed, and continuous updates run whenever a sync is done to the public API. The full synchronization fetches all products and categories and imports them asynchronously. For continuous updates to work, you must configure a webhook in the Bluestone PIM user interface. The webhook triggers an event every time a sync completes and transfers all data related to that batch of updates, including both product- and category-related changes.

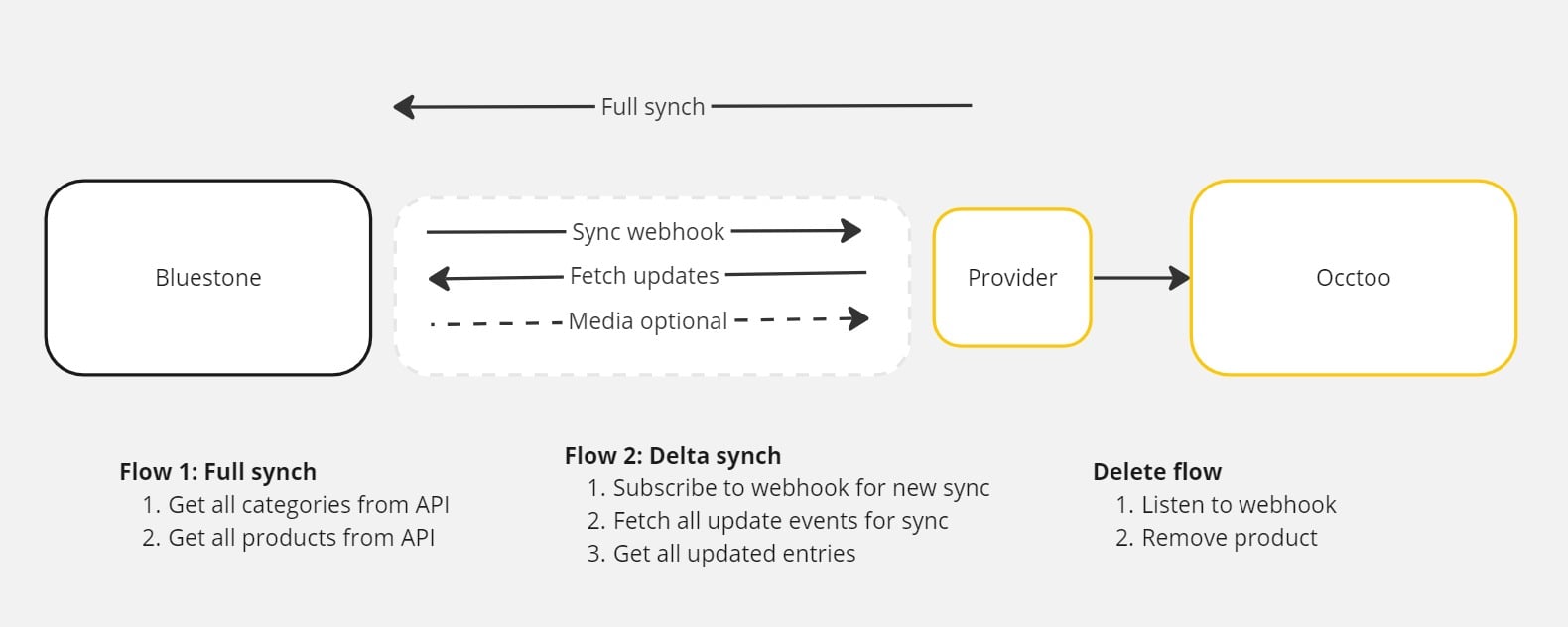

Overview of the data transfer from Bluestone PIM

Install and set up the provider

Prerequisites

To complete the setup, you need:

Access to the Bluestone PIM client
A Bluestone PIM API key
Access to the source code
An Azure storage account

Get the code

Request the code from developer@occtoo.com.

Create sources in Occtoo

Create the target sources in Occtoo, then add their identifiers to the following provider settings:

CategoriesDataSource
ProductsDataSource
MediaDataSource

For instructions, see Add a data source.

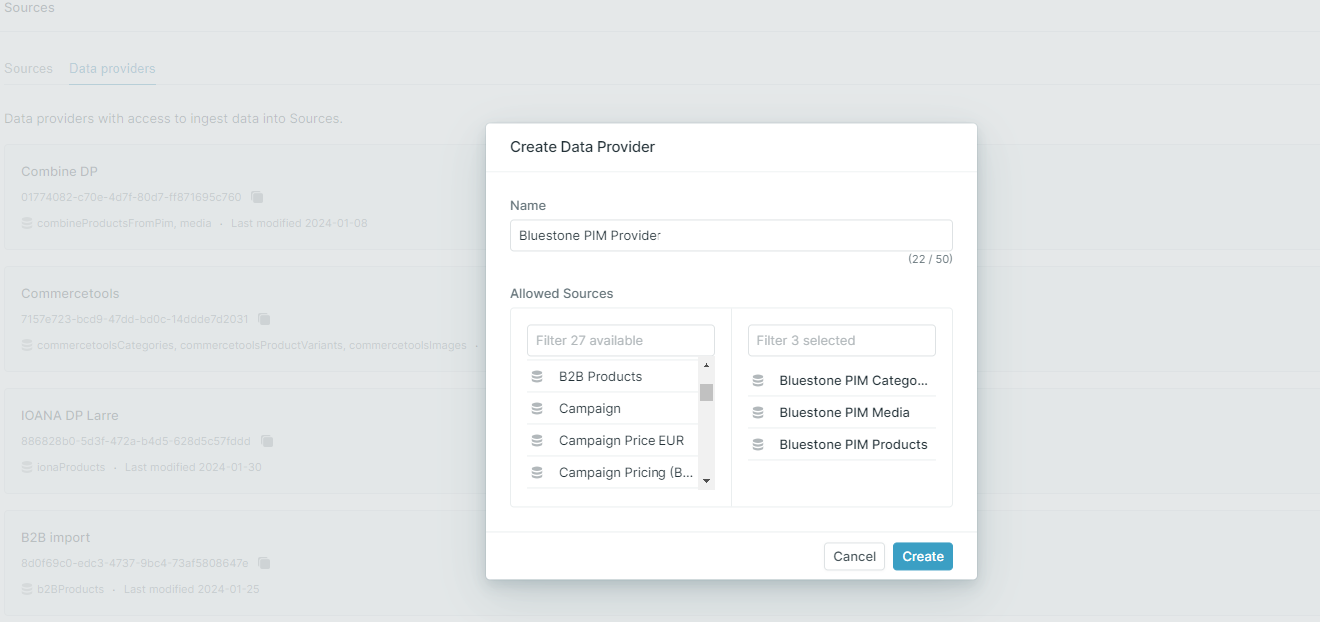

Register the provider in Occtoo

Register a provider and include the target sources from the previous step. Add the data provider ID and secret to the following settings:

DataProviderId
DataProviderSecret

For instructions, see Add a data provider.

Media

Set the HandleMedia setting to one of three values:

ignore — media is not transferred.
bluestone — use the original URLs provided by Bluestone PIM.
occtoo — upload all assets to the Occtoo media service.

Configure the Bluestone API

Before any data can be retrieved, you need an API key to connect to the Bluestone API. Add the key to the BluestoneAPIKeyValue setting.

Languages and contexts

Configure the languages, or contexts, to transfer up front. Two settings control the contexts:

DefaultContext
AdditionalContext

The default context holds the data for all non-localized attributes. Its value combines the context key from Bluestone and the language identifier from Occtoo, separated by a colon — for example, en:en. The additional context is optional and can contain one or more contexts to transfer as localized content. This setting works in relation to localized attributes. It follows the same structure as the default context, with multiple contexts separated by a comma — for example, 13472:sv,14373:de. To retrieve the context keys, call the /Contexts endpoint in the Bluestone public API.

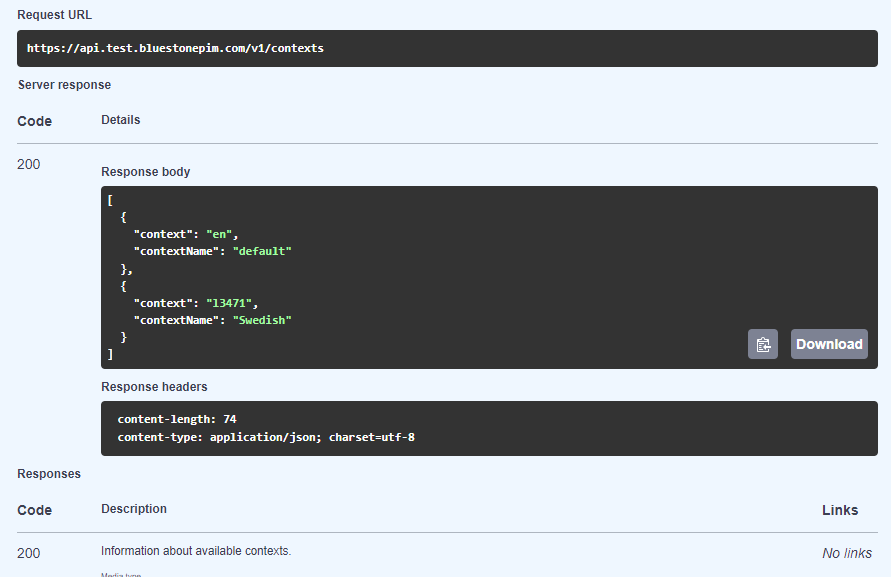

Get contexts from the Bluestone public API

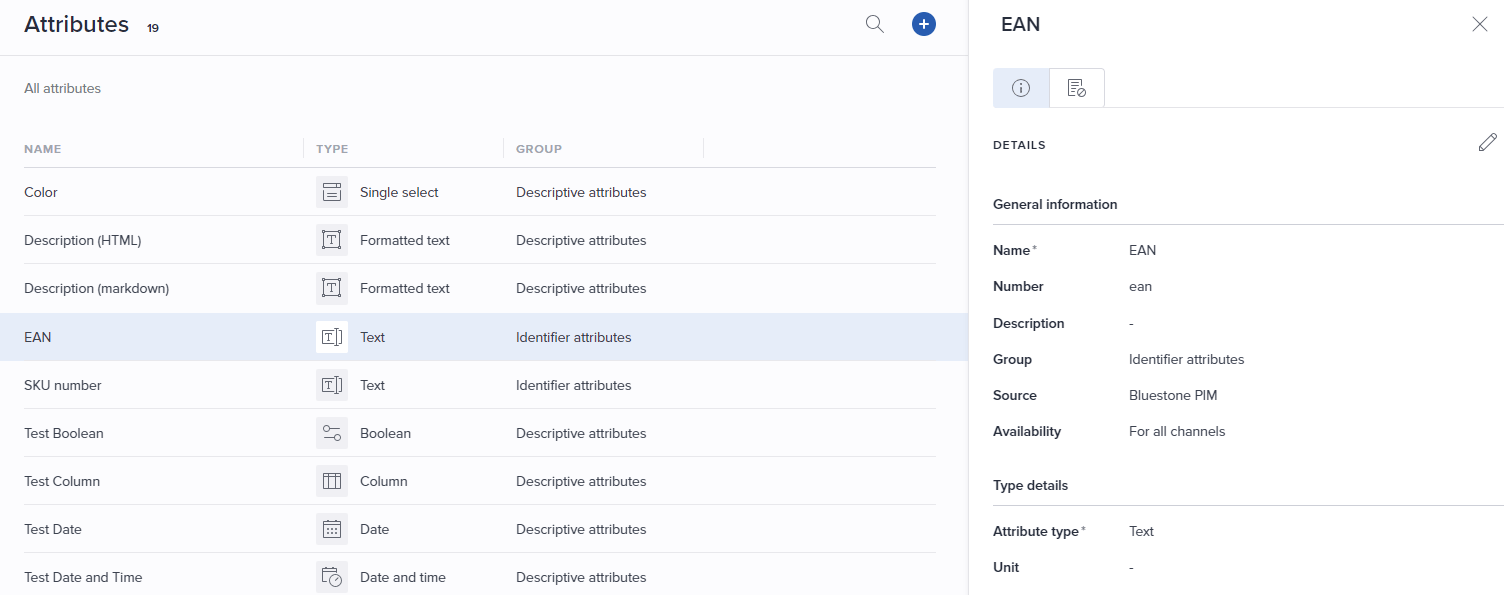

Attributes

All attribute types from Bluestone are transferred to Occtoo automatically, and the attribute number is used as the attribute identifier in Occtoo. Complex data types from Bluestone are serialized into JSON. For key-value properties, both the key and the value are transferred as separate properties. For multi-select values, the default separator is |. Properties that should be treated as localized text in Occtoo need to be configured. Two settings control localized properties:

LocalizedPropertiesProduct
LocalizedPropertiesCategory

Separate multiple properties with a comma. Specifying a property as localized means it receives the values for all configured contexts.

Configure webhooks

The update flow requires two webhooks — one for updates and one for deletes.

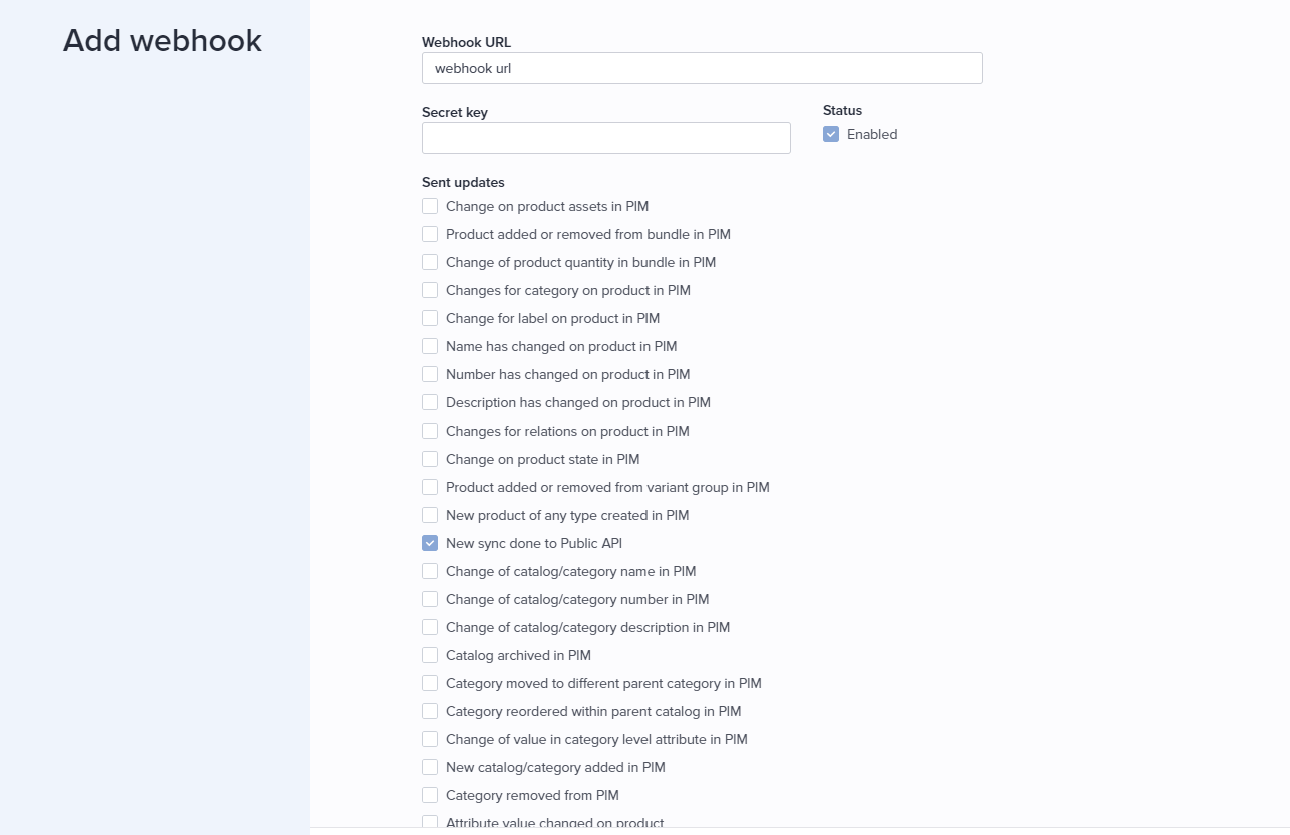

Update webhook

The update webhook publishes all changes to products and categories. When you create it, select the New sync done to public API option and add the URL to the DataSync HTTP function.

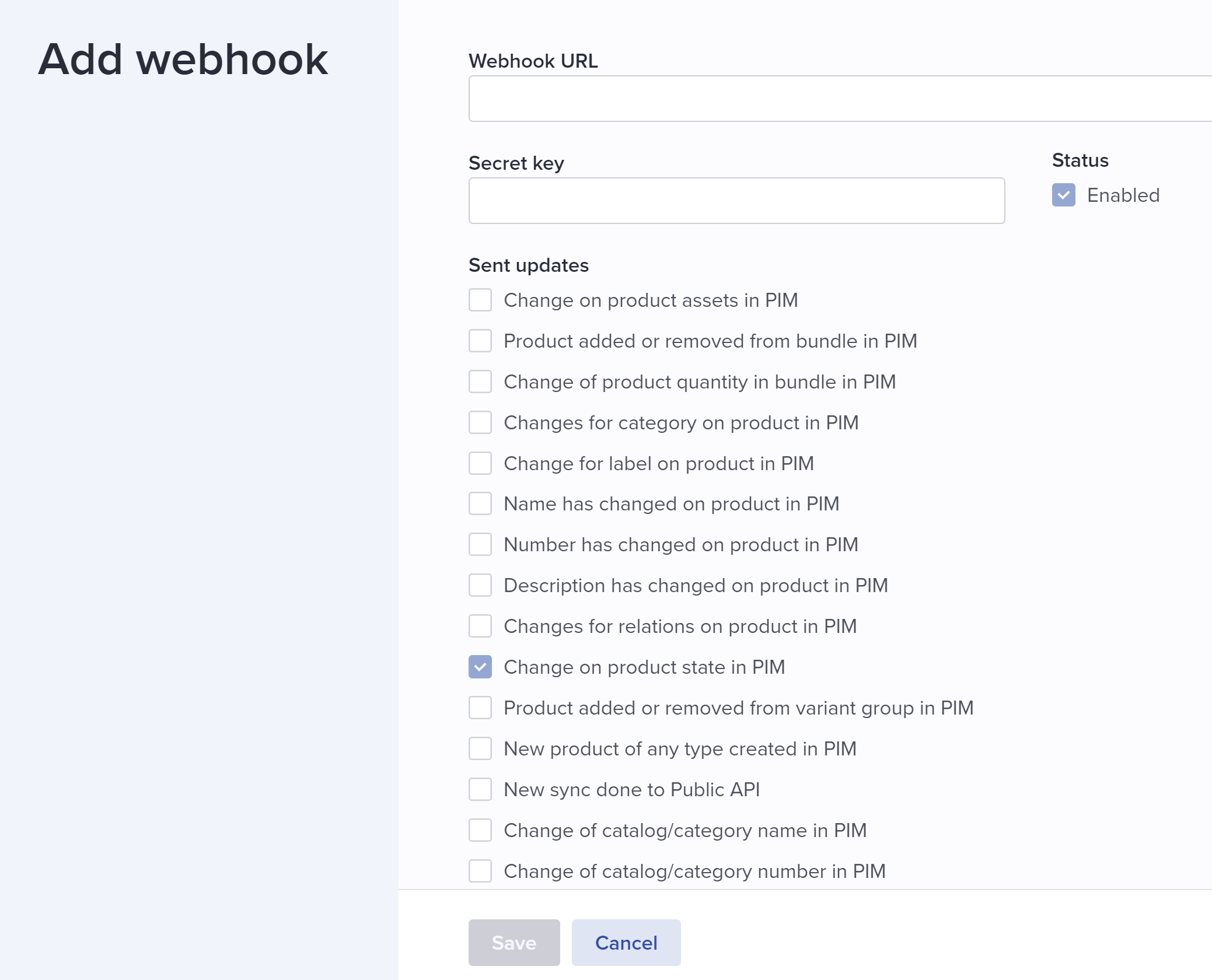

Delete webhook

The delete webhook removes products from Occtoo that have been archived in Bluestone. When you create it, select the Change on product state in PIM option.

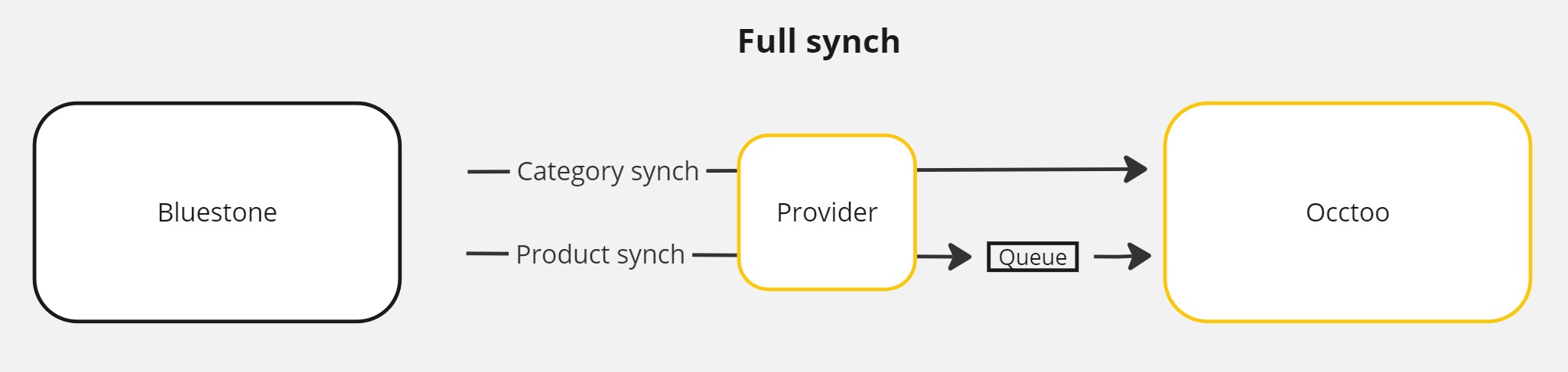

Full synchronization

Two endpoints handle full synchronization — one for categories and one for products. Both accept GET and POST requests. The category synchronization runs synchronously, fetching all categories and pushing them to the Occtoo onboarding API. The product synchronization iterates over all products and imports them asynchronously by placing them in a queue, which is then processed by a separate worker.

# Categories full sync
GET https://[root-url]/CategoriesFullSync

# Products full sync
POST https://[root-url]/ProductFullSync

Storage account

The full export requires an Azure storage account. Configure it with the following settings:

StorageConnectionString — the connection string for the storage account.
ProductQueue — the name of the queue for the products.
ProductContainer — the blob container used to persist the data.
